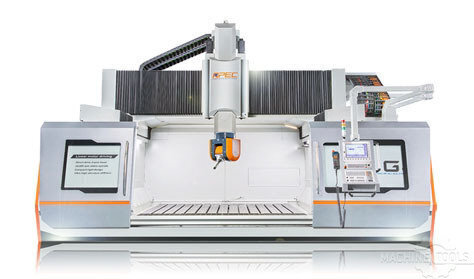

APEC G25 DYNA
- ÖzelTeknik Özellikleri İngiliz Ölçü Birimlerine DönüştürX6,000 mmY2,500 mmZ1,000 mmRPM24,000 RPMKontrolCNC
- Ürün Genel Bakışı
Specifications G25 Dyna
X-axis 2000/3000/4000/5000/6000+ mm
Y-axis 2500 mm
Z-axis 1000 mm
Rapid traverse X=20 Y=20 Z=20
X/Y/Z-axis acceleration 4
Spindle taper HSK 63A
Spindle speed 24000 rpm
Spindle power (S1/S6) 37/46 kW
Max. swivel/rotation speed B=30 C=30 rpm
Max. swivel/rotation torque (S1-100%) B=760 C=800 Nm
Clamping torque B=2100 C=3000 Nm
Swivel/rotation angle B=±105° C=±200° degree - Şirket Hakkında

Best and most complete 5axis machining products and services APEC Ltd. is a very professional in Taiwan machine tool manufacturers, belonging to the Tongtai Group, a subsidiary specializing in the design, manufacture and sale of large gantry high-speed 5-axis machine tools linked to the major economies in the world; our products can be broadly applied to the majority of industries, from aerospace, automobiles, trains trams, solar energy, shipbuilding, semiconductors, electronic equipment. We provide the best and most complete products and services to help customers around the world.
| Durum | Konum | Fiyat | |
|---|---|---|---|
Amerika Birleşik Devletleri | Yeni Siparişe Göre Üretim | Amerika Birleşik Devletleri |
