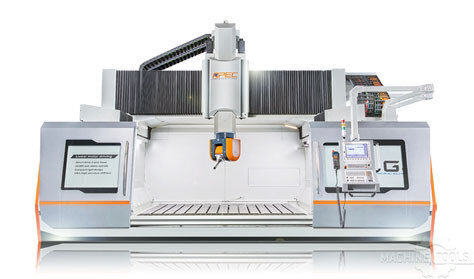

APEC G30 MAGLEV
- SpecificheConvertire le specifiche in unità imperialiX6,000 mmE3,000 mmZ1,000 mmgiri al minuto24,000 RPMConicitàHSK 63AControllareCNC
- Panoramica del prodotto
G Maglev
Two-axis head with direct drive motor
Spindle speed 24,000 rpm
U-frame structure
Linear motor in XY axis , rapid traverse 60m/min
Dual ball screw in Z axisSpecifications G30 Maglev
X-axis 2000/3000/4000/5000/6000+ mm
Y-axis 3000 mm
Z-axis 1000 mm
Rapid traverse X=60 Y=60 Z=40
X/Y/Z-axis acceleration 5
Spindle taper HSK 63A
Spindle speed 24000 rpm
Spindle power (S1/S6) 37/46 kW
Max. swivel/rotation speed B=30 C=30 rpm
Max. swivel/rotation torque (S1-100%) B=760 C=800 Nm
Clamping torque B=2100 C=3000 Nm
Swivel/rotation angle B=±105° C=±200° degree - Informazioni sull'azienda

Best and most complete 5axis machining products and services APEC Ltd. is a very professional in Taiwan machine tool manufacturers, belonging to the Tongtai Group, a subsidiary specializing in the design, manufacture and sale of large gantry high-speed 5-axis machine tools linked to the major economies in the world; our products can be broadly applied to the majority of industries, from aerospace, automobiles, trains trams, solar energy, shipbuilding, semiconductors, electronic equipment. We provide the best and most complete products and services to help customers around the world.
| Condizione | Posizione | Prezzo | |
|---|---|---|---|
| Nuovo Build-to-Order | Stati Uniti |
