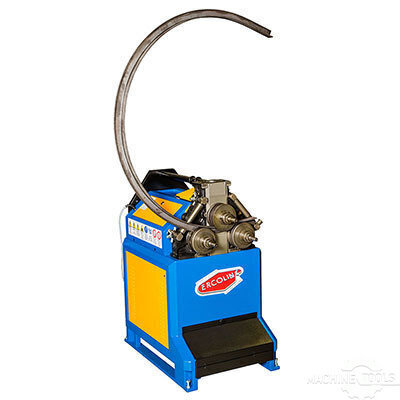

Ercolina’s CE50H3 angle roll model offers hydraulic center roll positioning.

Key Features:
- 50mm roll shaft diameter
- Maximum pipe capacity 2-1/2″ Sch. 40
- Maximum angle capacity 2-1/2″ x 2-1/2″ x 1/4″
- Bending speeds 20% faster than competitive machines
- Universal tooling set included with each machine – 7″ OD
- Forged roll shafts precision ground and fitted for maximum performance and minimal deflection
- Heavy duty structure and rigid components for high section modulus ratings
- Reinforced engineered mainframe design proven to outperform competitive models
- Patented by Ercolina simultaneous down feed and roll movement to minimize deformation
- Programmable touch pad controls with digital center roll positioning display
- Hydraulic machine with memory storage with eight (8) individual programs and unlimited passes
- Remote pendent with low voltage controls and foot pedal switch
- Threaded roll shafts with micro metric flange adjustment helps eliminate spacer usage
- Inline direct drive roll shaft system
- Optional Anti-twist correction system for angle iron “Leg In” applications
