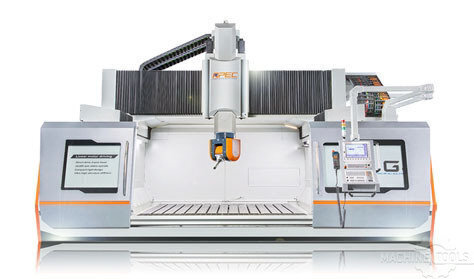

APEC G20 DYNA
- 투기사양을 인치 단위로 변환엑스6,000 mm와이2,000 mm지1,000 mmRPM24,000 RPM작은 초HSK 63A제어CNC
- 제품 개요
G Dyna
Two-axis head with direct drive motor
Spindle speed 24,000 rpm
U-frame structure
Ball screw in XYZ axis, rapid traverse 20 m/minSpecifications G20 Dyna
X-axis 2000/3000/4000/5000/6000+ mm
Y-axis 2000 mm
Z-axis 1000 mm
Rapid traverse X=20 Y=20 Z=20
X/Y/Z-axis acceleration 4
Spindle taper HSK 63A
Spindle speed 24000 rpm
Spindle power (S1/S6) 37/46 kW
Max. swivel/rotation speed B=30 C=30 rpm
Max. swivel/rotation torque (S1-100%) B=760 C=800 Nm
Clamping torque B=2100 C=3000 Nm
Swivel/rotation angle B=±105° C=±200° degree - 회사 소개

Best and most complete 5axis machining products and services APEC Ltd. is a very professional in Taiwan machine tool manufacturers, belonging to the Tongtai Group, a subsidiary specializing in the design, manufacture and sale of large gantry high-speed 5-axis machine tools linked to the major economies in the world; our products can be broadly applied to the majority of industries, from aerospace, automobiles, trains trams, solar energy, shipbuilding, semiconductors, electronic equipment. We provide the best and most complete products and services to help customers around the world.
